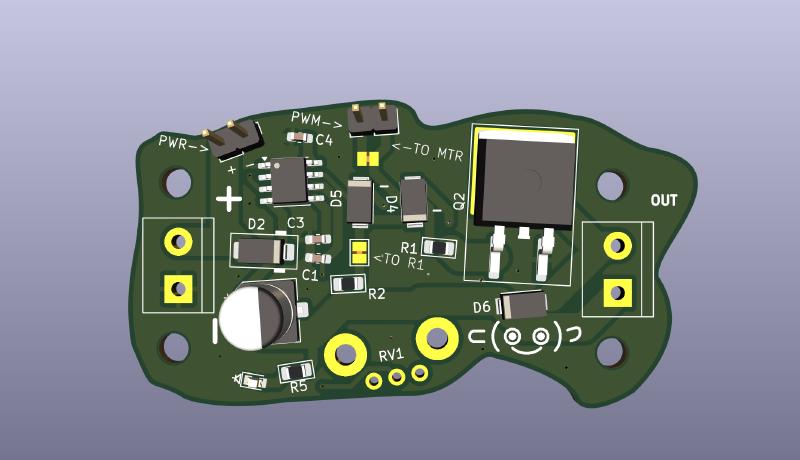

Tiny Analog Motor Controller
Simple, small and powerful analog motor controller.
Designed by Mads Kjeldgaard for hyaline.systems.
Features
- Easy to use: Just connect power at one end, a motor at the other end.
- Power: 5-15V DC
- Control speed using a potentiometer.
- Hackable: Pins broken out to allow daisy chaining boards, or connecting circuitry in between the PWM signal and the motor gate (eg a button, an LDR or whatever).
- Based on a 555 timer chip in astable mode.
- 4 x M3 mounting holes
- Completely open source.
- Tiny (about the size of a matchbox)
Videos
Datasheets
- 555 chip: LMC555
- Motor mosfet: Infineon IRFS3806TRLPBF (but any similar mosfet will do the job).
Credits
- Thanks PCBWay for sponsoring the PCB’s for this project during prototyping.
- Thanks Thom, Niklas, Eirik, Fredrik and others for inspiration.
